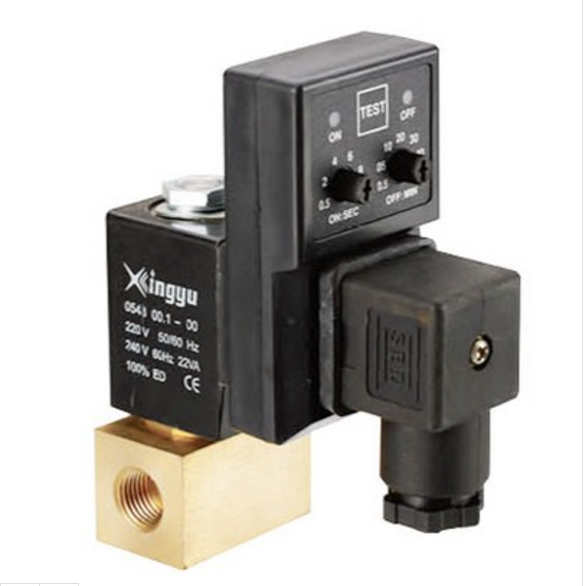

CS Automatic Drain Valve
Speciality
1. Conforming to CE standard;
2. Fully Automatic ,maintenance-free;
3. Suitable for automatic discharge of condense water in many occasions and automatic irrigation system;
4. Different voltage and port size are available for selection;
5. Interval and working time can be adjustable;
6. Without manual testing switch;
7. ABS Flame-proof house ,can reach IP65 class after right installed;
8. Applicable to a wide range of temperature;
9. Direct-acting ,big orifice ,to avoid blockade;
10. With filter ball valve, port size and manual switch can do any changes ,easy to install and maintain;
Parameters
Model
|
CS-720 |
Valve Stype |
2/2 Direction action |
Connection |
1/8" 1/4" 3/8" 1/2" Female |
Ports |
Working pressure |
16Bar 40Bar 80Bar |
On/off time |
On 0.5-10s |
Off 0.5-45min |
Working temp. |
-20ºC - 60ºC |
Highest media |
160ºC |
Temperature |
Valve body |
Brass / stainless steel |
Orifice |
1.9mm 2.5mm 4.5mm |
Protection class |
F/H class IP65 (with plug) |
Insulation class |
Voltage |
24-240V DC/AC 56/60±10% |
Power |
AC22VA/DC20W |
Mounting |
Any place |
